RP-1212D DC-DC Converter, Medical, 2 O/P, 1W RECOM Power

RECOM POWERUGS :RP-1212D Code de commande:1793347

Prix:
Prix ​​promotionnel€22,78

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

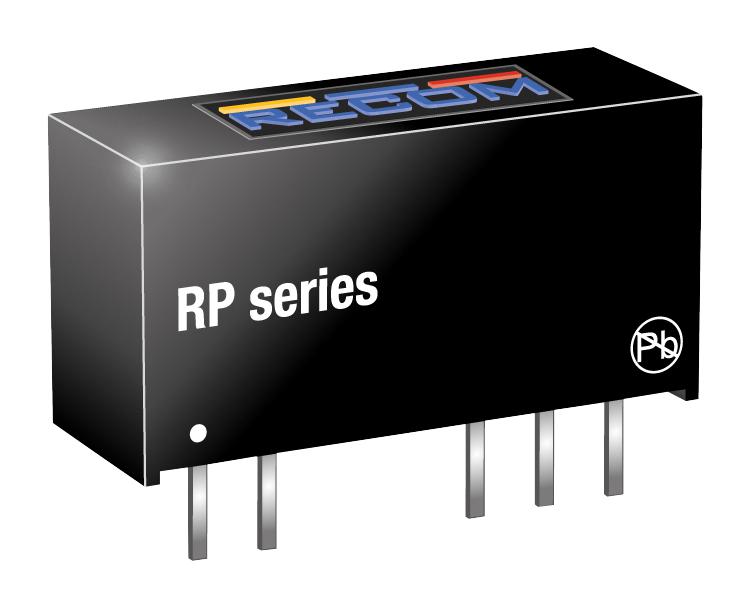

RECOM POWER - RP-1212D - Isolated Through Hole DC/DC Converter, Medical, 1:1, 1 W, 2 Output, 12 V, 42 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 42mA
  • Output Voltage - Output 2: -12V
  • Output Current - Output 2: 42mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: RP Series
  • Input Voltage DC Min: 10.8V
  • Input Voltage DC Max: 13.2V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 7.05mm
  • Height: 10.2mm
  • Depth: 19.65mm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: EN, UL
  • Approvals & Standards: CSA, IEC 60601, UL
  • Efficiency Max: 82%
  • External Depth: 10.2mm
  • External Length / Height: 19.65mm
  • External Width: 7.05mm
  • Isolation Voltage: 5.2kV
  • No. of Outputs: 2Outputs
  • Operating Temperature Max: +85°C
  • Operating Temperature Min: -40°C
  • Power Rating: 1W
