description

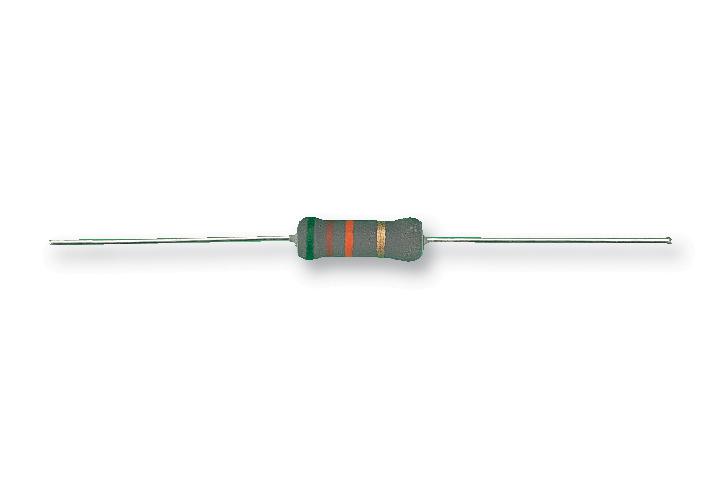

NEOHM - TE CONNECTIVITY - ROX1SJ47K - Through Hole Resistor, 47 kohm, ROX, 1 W, ± 5%, Axial Leaded, 350 V
- Resistance: 47kohm
- Product Range: ROX Series
- Power Rating: 1W
- Resistance Tolerance: ± 5%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 350V
- Resistor Element Material: Metal Oxide
- Temperature Coefficient: ± 350ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- External Length / Height: 3.5mm
- External Width: 10mm
- Lead Diameter: 0.54mm
- Lead Length: 28mm
- No. of Pins: 2Pins
- Operating Temperature Max: 235°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +235°C
- Overload Voltage: 600V
- Resistor Mounting: Through Hole
