RK09K1130C79 Potentiometer, 10KB Alps Alpine

ALPS ALPINEUGS :RK09K1130C79 Code de commande:1191741

Prix:
Prix ​​promotionnel€2,63

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1966 unité)

Documents et téléchargements

description

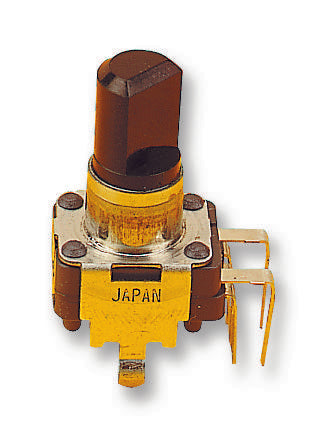

ALPS ALPINE - RK09K1130C79 - Rotary Potentiometer, 10 kohm, 1 Turns, Linear, 50 mW, ± 20%, RK09

  • Track Resistance: 10kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 50mW
  • Resistance Tolerance: ± 20%
  • Product Range: RK09 Series
  • Potentiometer Mounting: Through Hole
  • Shaft Diameter: 6mm
  • No. of Gangs: 1
  • Adjustment Type: Rotary
  • Shaft Length: 17mm
  • SVHC: No SVHC (20-Jun-2016)
  • End Resistance: 10kohm
  • External Length / Height: 6.8mm
  • External Width: 9.8mm
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +60°C
  • Resistance: 10kohm
  • Resistor Element Material: Metal Foil
  • Rotation Mechanical Angle: 300°
  • Termination Type: Solder
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating: 20V
  • Voltage Rating V DC: 20V
  • Voltage Rating VAC: 50V
