RG142 Cable, Coax, RG142,100m multicomp Pro

MULTICOMP PROUGS :RG142 Code de commande:2064894

Prix:
Prix ​​promotionnel€630,50

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (67 unité)

Documents et téléchargements

description

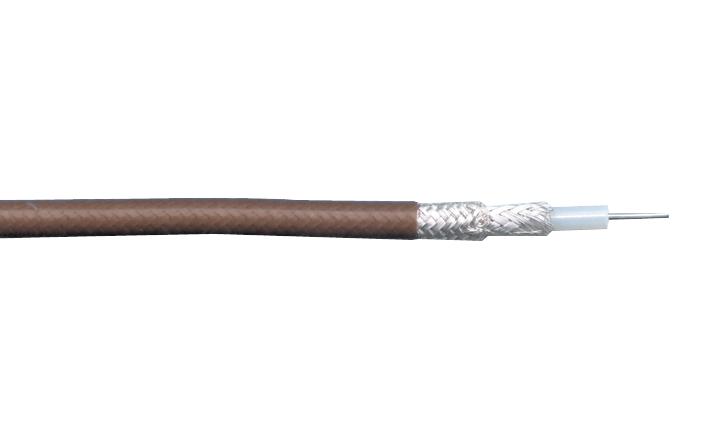

MULTICOMP PRO - RG142 - Coaxial Cable, Silver Plated Copper Double Braid, RG142, 0.694 mm², 50 ohm, 328 ft, 100 m

  • Coaxial Cable Type: RG142
  • Wire Gauge: -
  • Conductor Area CSA: 0.694mm²
  • Impedance: 50ohm
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • Jacket Colour: Brown
  • Jacket Material: FEP
  • Conductor Material: Silver Plated Copper
  • No. of Max Strands x Strand Size: -
  • External Diameter: 4.95mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Attenuation @ 100MHz: 14.4dB
  • Attenuation @ 1GHz: 50.2dB
  • Attenuation @ 400MHz: 25.9dB
  • Attenuation @ 50MHz: 9.8dB
  • Attenuation @ 900MHz: 47dB
  • Capacitance: 96.5pF/m
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -55°C
  • Velocity of Propagation (%): 69.5%
  • Voltage Rating VAC: 1900V
