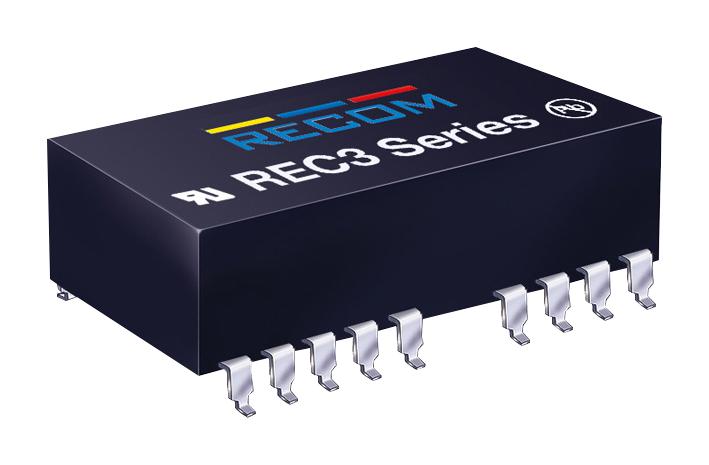

RECOM POWER - REC3-1205SRW/H4/A - Isolated Through Hole DC/DC Converter, Medical, 2:1, 3 W, 1 Output, 5 V, 600 mA
- No. of Outputs: 1 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 600mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: REC3-S/DRW Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 32mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN 60601
- Approvals & Standards: IEC 60601
- Efficiency Max: 86%
- External Depth: 10.2mm
- External Length / Height: 32mm
- External Width: 20.3mm
- Isolation Voltage: 4kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
- Power Rating: 3W
