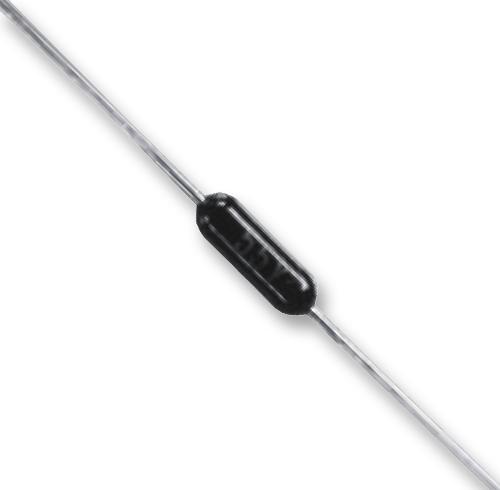

RC55Y-14K3BI Res, 14K3, 0.10%, 250MW, Axial TT Electronics / WELWYN

TT ELECTRONICS / WELWYNUGS :RC55Y-14K3BI Code de commande:9500340

Prix:
Prix ​​promotionnel€9,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (482 unité)

Documents et téléchargements

description

TT ELECTRONICS / WELWYN - RC55Y-14K3BI - Through Hole Resistor, 14.3 kohm, RC55, 250 mW, ± 0.1%, Axial Leaded, 350 V

  • Resistance: 14.3kohm
  • Product Range: RC55 Series
  • Power Rating: 250mW
  • Resistance Tolerance: ± 0.1%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 350V
  • Resistor Element Material: Metal Film
  • Temperature Coefficient: ± 15ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 2.5mm
  • External Length / Height: 7.2mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.6mm
  • Lead Length: 30mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Through Hole
  • Standard: BS9111 N001
  • Temperature Coeff. +: 15ppm/°C
  • Temperature Coeff. -: 15ppm/°C
  • Tolerance +: 0.1%
  • Tolerance -: 0.1%
  • Voltage Rating V DC: 200V
  • Voltage Rating VAC: 200V
