RC0805FR-07330RL Res, 330R, 1%, 0.125W, 0805, Thick Film YAGEO

YAGEOUGS :RC0805FR-07330RL Code de commande:9237429

Prix:
Prix ​​promotionnel€0,03

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (80955 unité)

Documents et téléchargements

description

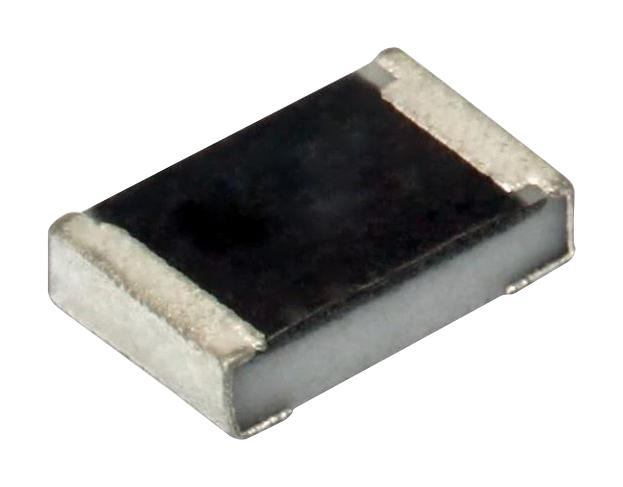

YAGEO - RC0805FR-07330RL - SMD Chip Resistor, 330 ohm, ± 1%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose

  • Resistor Case Style: 0805 [2012 Metric]
  • Resistance: 330ohm
  • Product Range: RC Series
  • Voltage Rating: 150V
  • Resistor Element Material: Thick Film
  • Power Rating: 125mW
  • Resistance Tolerance: ± 1%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 0.55mm
  • External Length / Height: 2mm
  • External Width: 1.25mm
  • Full Power Rating Temperature: 70°C
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Reel Quantity: 5000
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
  • Voltage Rating V DC: 150V
