RC0402FR-0730KL Res, 30K, 1%, 0.063W, 0402, Thick Film YAGEO

YAGEOUGS :RC0402FR-0730KL Code de commande:1458778

Prix:
Prix ​​promotionnel€0,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (317307 unité)

Documents et téléchargements

description

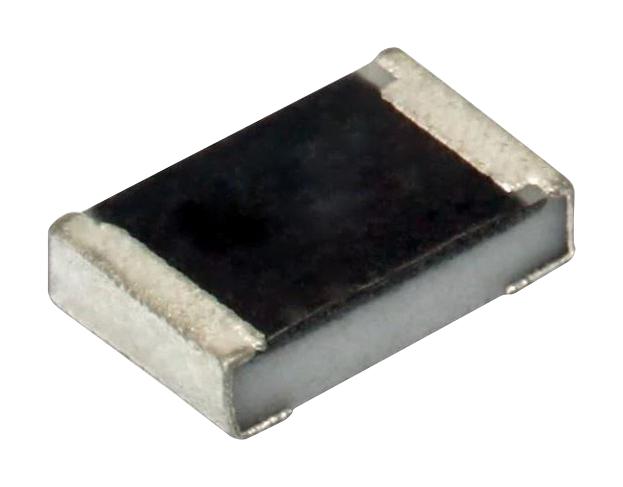

YAGEO - RC0402FR-0730KL - SMD Chip Resistor, 30 kohm, ± 1%, 62.5 mW, 0402 [1005 Metric], Thick Film, General Purpose

  • Resistor Case Style: 0402 [1005 Metric]
  • Resistance: 30kohm
  • Product Range: RC Series
  • Voltage Rating: 50V
  • Resistor Element Material: Thick Film
  • Power Rating: 63mW
  • Resistance Tolerance: ± 1%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 0.35mm
  • External Length / Height: 1mm
  • External Width: 0.5mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Overload Voltage: 100V
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
