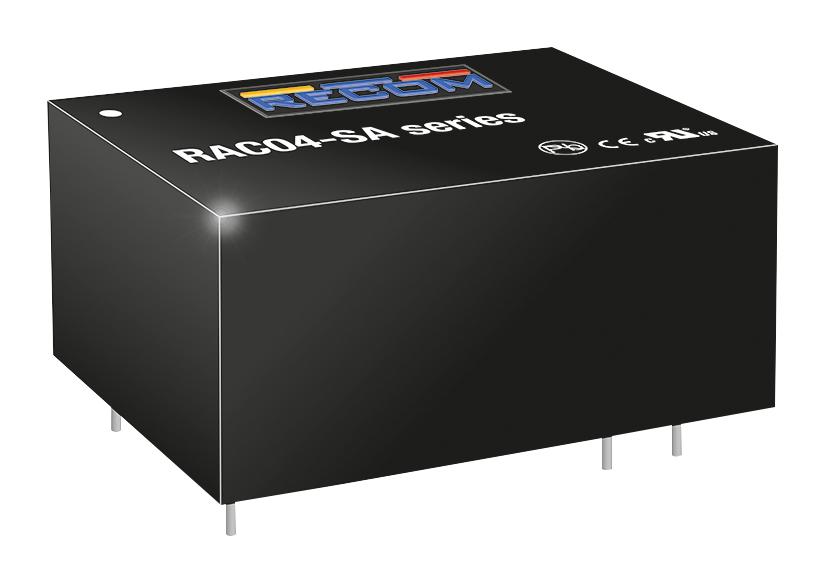

RECOM POWER - RAC04-24SA - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 4 W, 24 V, 167 mA
- No. of Outputs: 1 Output
- Output Power Max: 4W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 167mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Adjustable
- Input Voltage VAC: 90V AC to 264V AC
- Width: 27mm
- Height: 36.7mm
- Depth: 17.1mm
- Product Range: RAC04 Series
- SVHC: No SVHC (15-Jan-2019)
- Applications: General Purpose
- Approval Bodies: UL
- DC / DC Converter Mounting: Through Hole
- DC / DC Converter Output Type: Fixed
- Efficiency Max: 77%
- External Depth: 17.1mm
- External Length / Height: 36.7mm
- External Width: 27.2mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Isolation Voltage: 3kV
- Length: 36.7mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: +70°C
- Operating Temperature Min: -40°C
- Output Current Max: 167mA
- Power Rating: 4W
