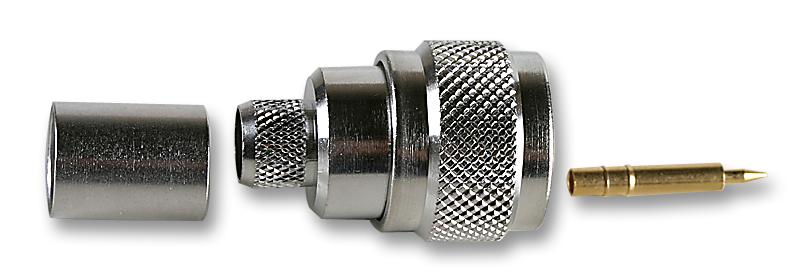

RADIALL - R161075000 - RF / Coaxial Connector, N Coaxial, Straight Plug, Crimp, 50 ohm, RG165, RG213, Brass
- Connector Type: N Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG165, RG213
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 11GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Bright Bronze
- Coaxial Type: RG165/U, RG213/U, RG215/U, URM67, URM102, KX4
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- Material: Brass
- No. of Mating Cycles: 500
- Operating Frequency Max: 11GHz
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Termination Method: Crimp
- Voltage Rating VAC: 850V
