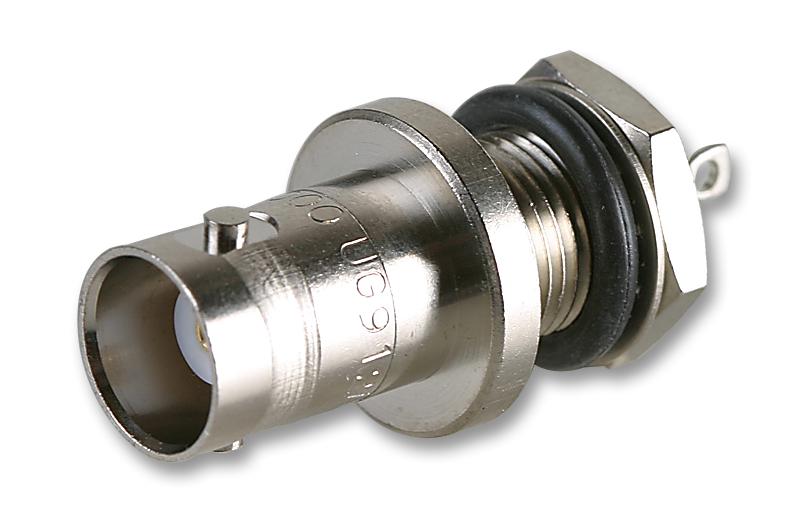

R141625000 RF Coaxial, BNC, Straight Jack, 50ohm RADIALL

RADIALLUGS :R141625000 Code de commande:1207553

Prix:
Prix ​​promotionnel€124,17

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (41 unité)

Documents et téléchargements

description

RADIALL - R141625000 - RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Beryllium Copper

  • Connector Type: BNC Coaxial
  • Connector Body Style: Straight Bulkhead Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 4GHz
  • Connector Mounting: Panel Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Nickel
  • Connector Mounting Orientation: Panel
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Solder
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1000V
