R13-244A5-02-WW-3a Switch, Rocker, DPST, On-Off multicomp Pro

MULTICOMP PROUGS :R13-244A5-02-WW-3A Code de commande:1634651

Prix:
Prix ​​promotionnel€4,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2733 unité)

Documenten en downloads

description

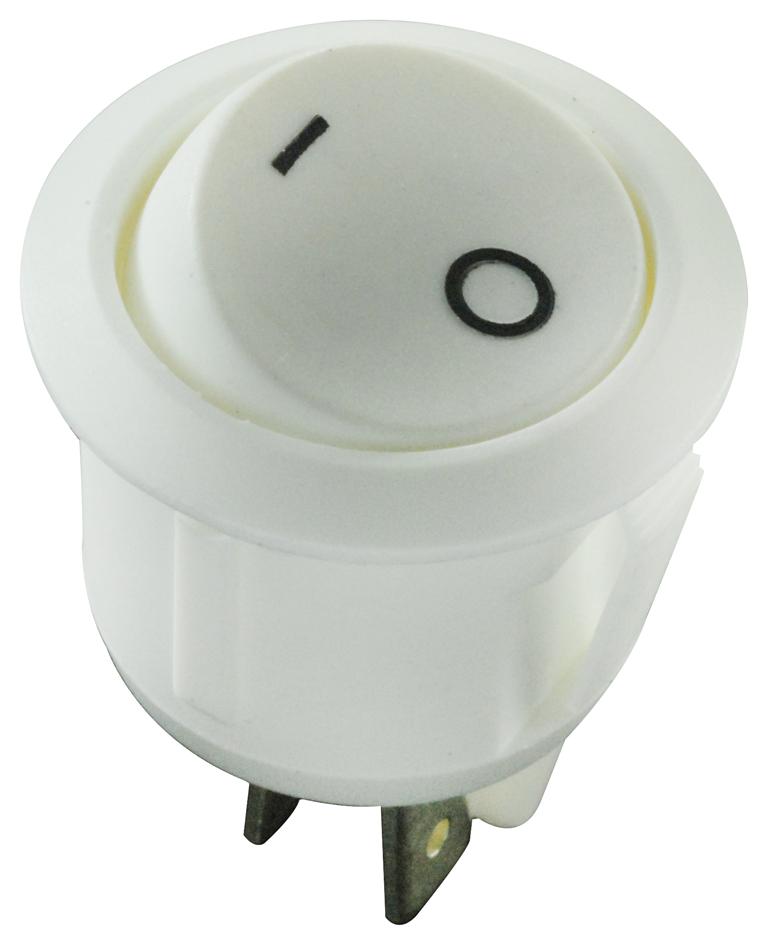

MULTICOMP PRO - R13-244A5-02-WW-3A - Rocker Switch, On-Off, DPST, Non Illuminated, Panel Mount, White, R13

  • Illumination: Non Illuminated
  • Contact Configuration: DPST
  • Switch Operation: On-Off
  • Actuator / Cap Colour: White
  • Switch Mounting: Panel
  • Contact Current Max: 20A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 12V
  • Product Range: R13 Series
  • Approval Bodies: CQC, CNS, CSA, DEMKO, ENEC, FIMKO, NEMKO, SEMKO, TUV, VDE
  • Approval Category: UL Recognised
  • Bezel Diameter: 25.5mm
  • Colour: White
  • Contact Current AC: 10A
  • Contact Current AC Max: 16A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250VAC
  • Height: 15.3mm
  • Height Max: 35.3mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Legend: I O
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 20.2mm
  • Panel Thickness Max: 2.5mm
