R13-23B-05-Br Switch, SPST, Latching, Red multicomp Pro

MULTICOMP PROUGS :R13-23B-05-BR Code de commande:1634633

Prix:
Prix ​​promotionnel€3,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (7181 unité)

Documents et téléchargements

description

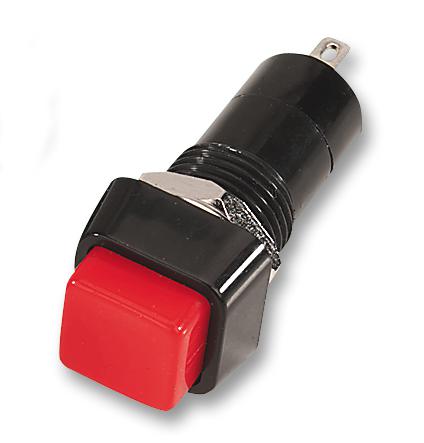

MULTICOMP PRO - R13-23B-05-BR - Pushbutton Switch, R13-23x, 12.2 mm, SPST, Off-On, Square, Red

  • Switch Operation: (Off)-On
  • Contact Configuration: SPST-NC
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Current Max: 3A
  • Switch Terminals: Solder Lug
  • Product Range: -
  • Actuation Type: Square
  • Actuator / Cap Colour: Red
  • Bezel Depth: 15.5mm
  • Bezel Height: 6.4mm
  • Bezel Width: 15.5mm
  • Colour: Red
  • Contact Current AC: 1.5A
  • Contact Current AC Max: 3A
  • Contact Resistance: 50mohm
  • Contact Voltage VAC: 125V
  • Height: 22.9mm
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Material: Phenolic base
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 12.2mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Standard
  • Shaft Length: 4mm
  • Switch Mounting: Panel
