R13-112F-02-BB-0A Switch, Rocker, SPST, On-Off, Mom multicomp Pro

MULTICOMP PROUGS :R13-112F-02-BB-0A Code de commande:1634643

Prix:
Prix ​​promotionnel€2,75

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5831 unité)

Documents et téléchargements

description

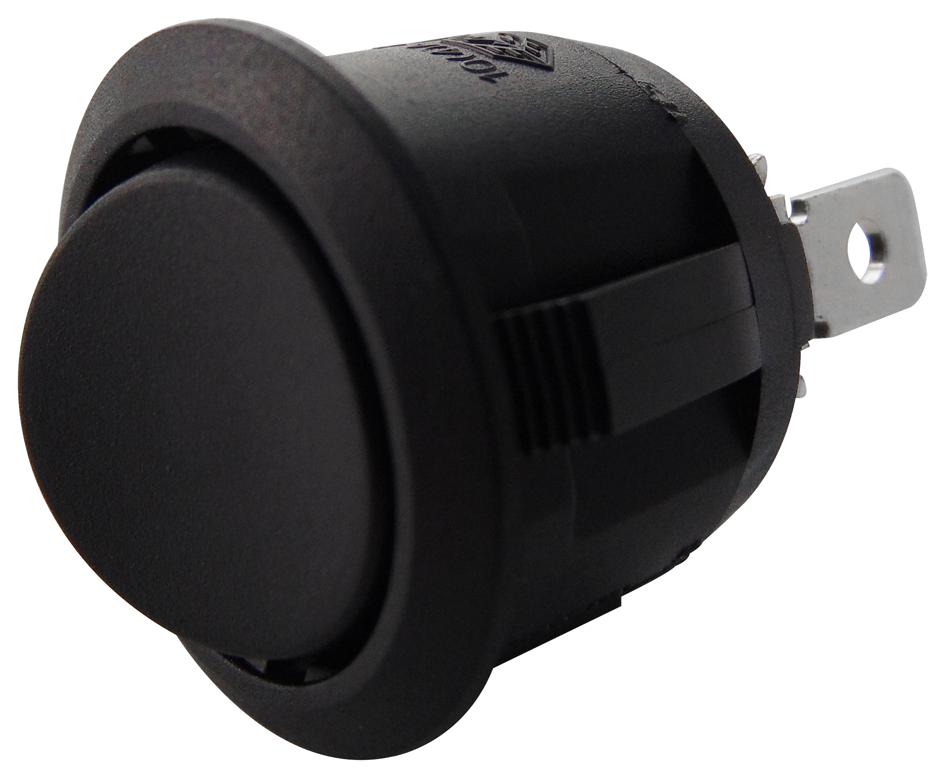

MULTICOMP PRO - R13-112F-02-BB-0A - Rocker Switch, Off-(On), SPST, Non Illuminated, Panel Mount, Black, R13

  • Illumination: Non Illuminated
  • Contact Configuration: SPST
  • Switch Operation: Off-(On)
  • Actuator / Cap Colour: Black
  • Switch Mounting: Panel
  • Contact Current Max: 20A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 12V
  • Product Range: R13 Series
  • Approval Bodies: CQC, CNS, CSA, DEMKO, ENEC, FIMKO, NEMKO, SEMKO, TUV, VDE
  • Approval Category: UL Recognised
  • Bezel Diameter: 23.5mm
  • Bezel Height: 2mm
  • Colour: Black
  • Contact Current AC: 10A
  • Contact Current AC Max: 16A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250VAC
  • Height: 15.8mm
  • Height Max: 26.3mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 20.2mm
  • Panel Thickness Max: 3mm
