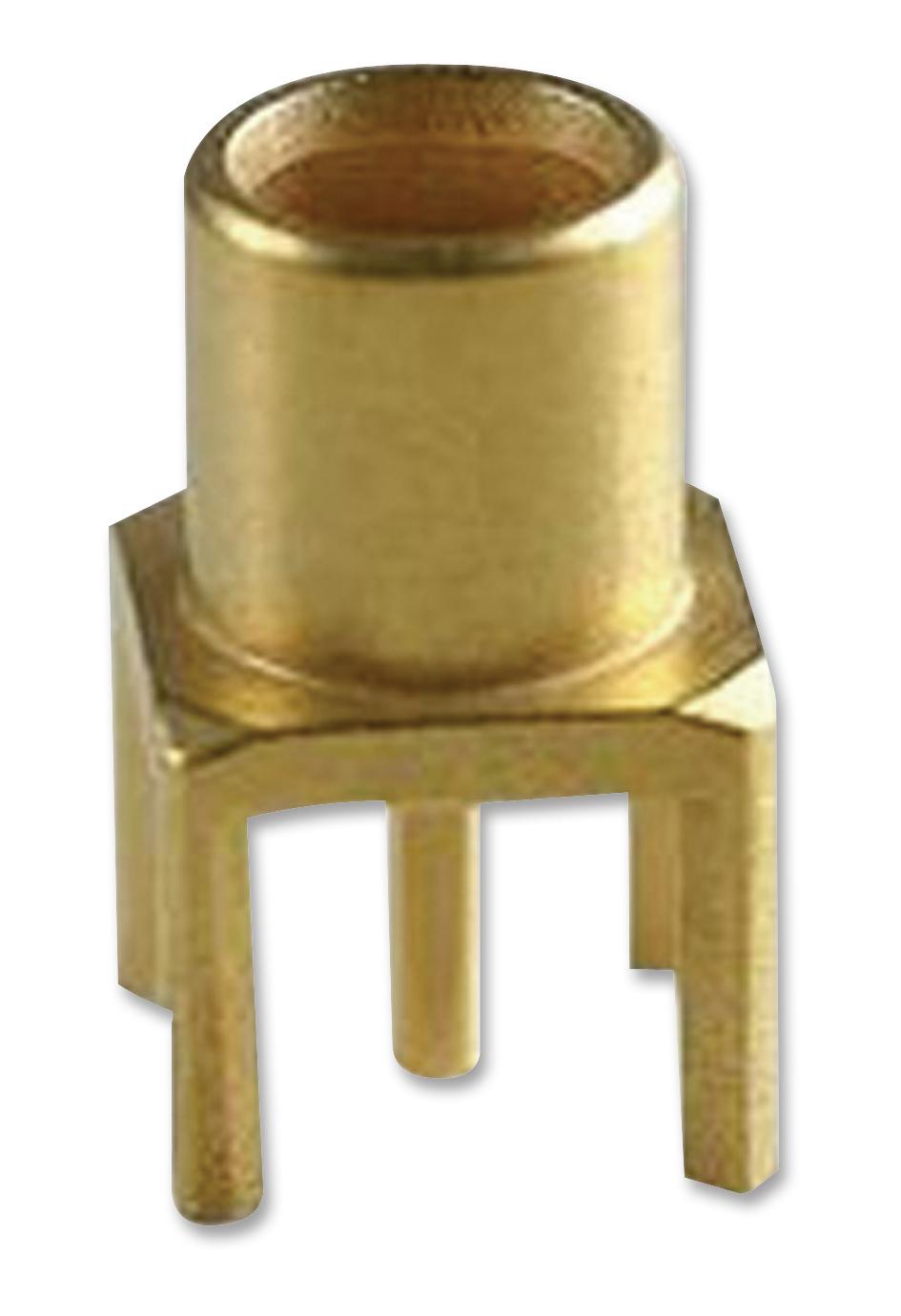

R113426000 RF Coaxial, MCX, Straight Jack, 50ohm RADIALL

RADIALLUGS :R113426000 Code de commande:886853

Prix:
Prix ​​promotionnel€10,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4031 unité)

Documents et téléchargements

description

RADIALL - R113426000 - RF / Coaxial Connector, MCX Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper

  • Connector Type: MCX Coaxial
  • Connector Body Style: Straight Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 3GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Gold
  • Connector Mounting Orientation: PC Board
  • Material: Brass
  • Operating Frequency Max: 3GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Proof Voltage: 500V
  • Termination Method: Solder
  • VSWR: 1.35
  • Working Voltage: 170V
