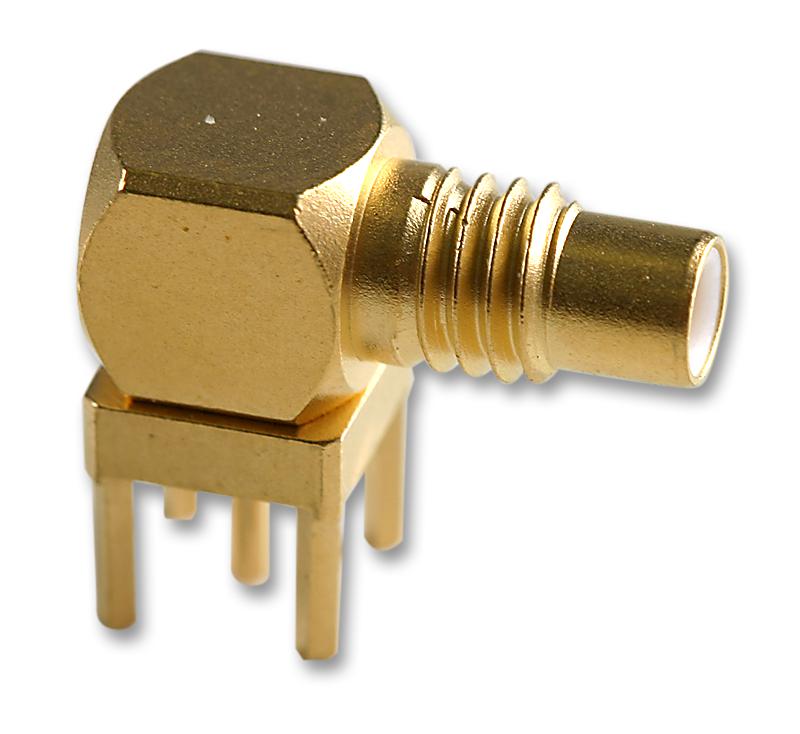

R112665000 RF Coaxial, SMC, Right Angle Jack, 50ohm RADIALL

RADIALLUGS :R112665000 Code de commande:4194330

Prix:
Prix ​​promotionnel€28,05

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (82 unité)

Documents et téléchargements

description

RADIALL - R112665000 - RF / Coaxial Connector, SMC Coaxial, Right Angle Jack, Through Hole Right Angle, 50 ohm, Brass

  • Connector Type: SMC Coaxial
  • Connector Body Style: Right Angle Jack
  • Coaxial Termination: Through Hole Right Angle
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 10GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Gold
  • Connector Mounting Orientation: PCB
  • Insulation Resistance: 1000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 10GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Solder
  • Voltage Rating VAC: 335V
