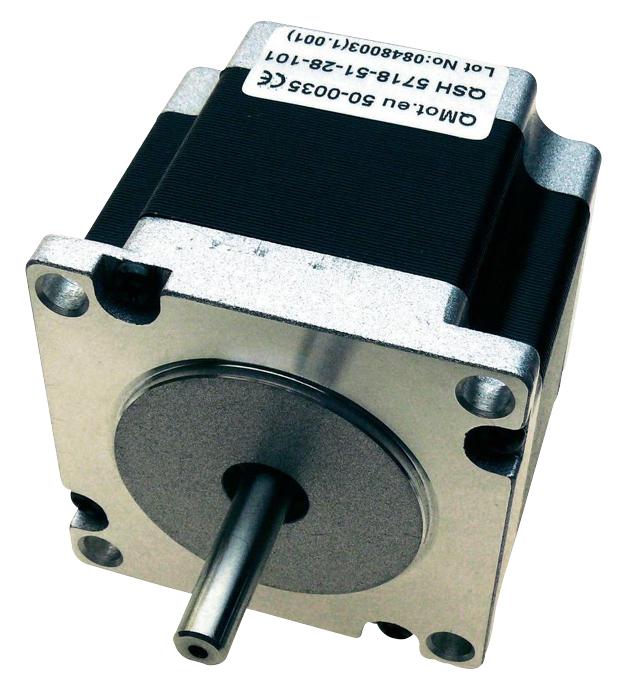

TRINAMIC / ANALOG DEVICES - QSH5718-51-28-101 - Stepper Motor, Single Shaft, Hybrid, 56.4 mm, DC, 1.8 °, 1.01 N-m
- Coil Type: DC
- Torque Max: 1.01N-m
- Current Rating: -
- No. of Phases: Two Phase
- Resistance: 0.83ohm
- Inductance: 2.2mH
- Inertia: 275g-cm²
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Current per Phase: 2.8A
- Detent Torque: 3.5N-cm
- External Length / Height: 41mm
- Flange Width: 56.4mm
- Holding Torque: 101N-cm
- No. of Shafts: 1
- Phase Resistance: 0.83ohm
