QS5K2TR MOSFET, Dual, NN, 30V, 2A ROHM

ROHMUGS :QS5K2TR Code de commande:1525458

Prix:
Prix ​​promotionnel€0,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (12756 unité)

Documents et téléchargements

description

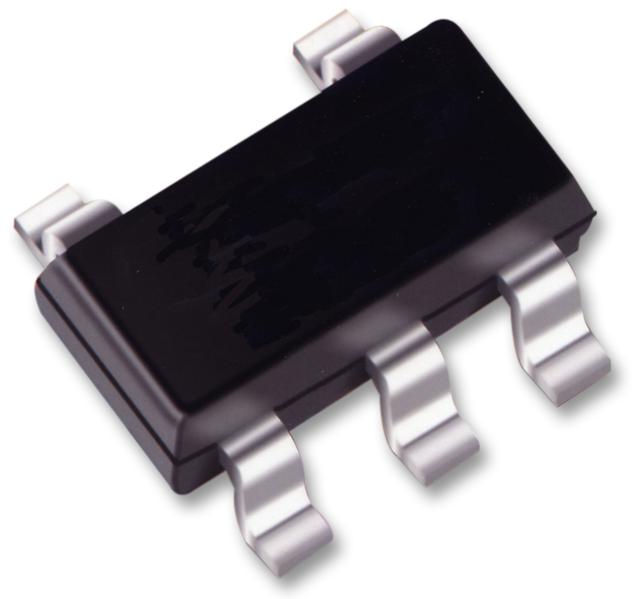

ROHM - QS5K2TR - Dual MOSFET, N Channel, 30 V, 2 A, 0.154 ohm, TSMT, Surface Mount

  • Transistor Polarity: Dual N Channel
  • Continuous Drain Current Id: 2A
  • Drain Source Voltage Vds: 30V
  • On Resistance Rds(on): 0.154ohm
  • Rds(on) Test Voltage Vgs: 4.5V
  • Threshold Voltage Vgs: 1.5V
  • Power Dissipation Pd: 1.25W
  • Transistor Case Style: TSMT
  • No. of Pins: 5Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Capacitance Ciss Typ: 175pF
  • Continuous Drain Current Id, N Channel: 2A
  • Current Id Max: 2A
  • Drain Source Voltage Vds, N Channel: 30V
  • Fall Time tf: 8ns
  • Module Configuration: Dual
  • On Resistance Rds(on), N Channel: 0.071ohm
  • Pulse Current Idm: 8A
  • Rise Time: 10ns
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 30V
  • Voltage Vgs Rds on Measurement: 2.5V
  • Voltage Vgs th Max: 1.5V
  • Voltage Vgs th Min: 500mV
