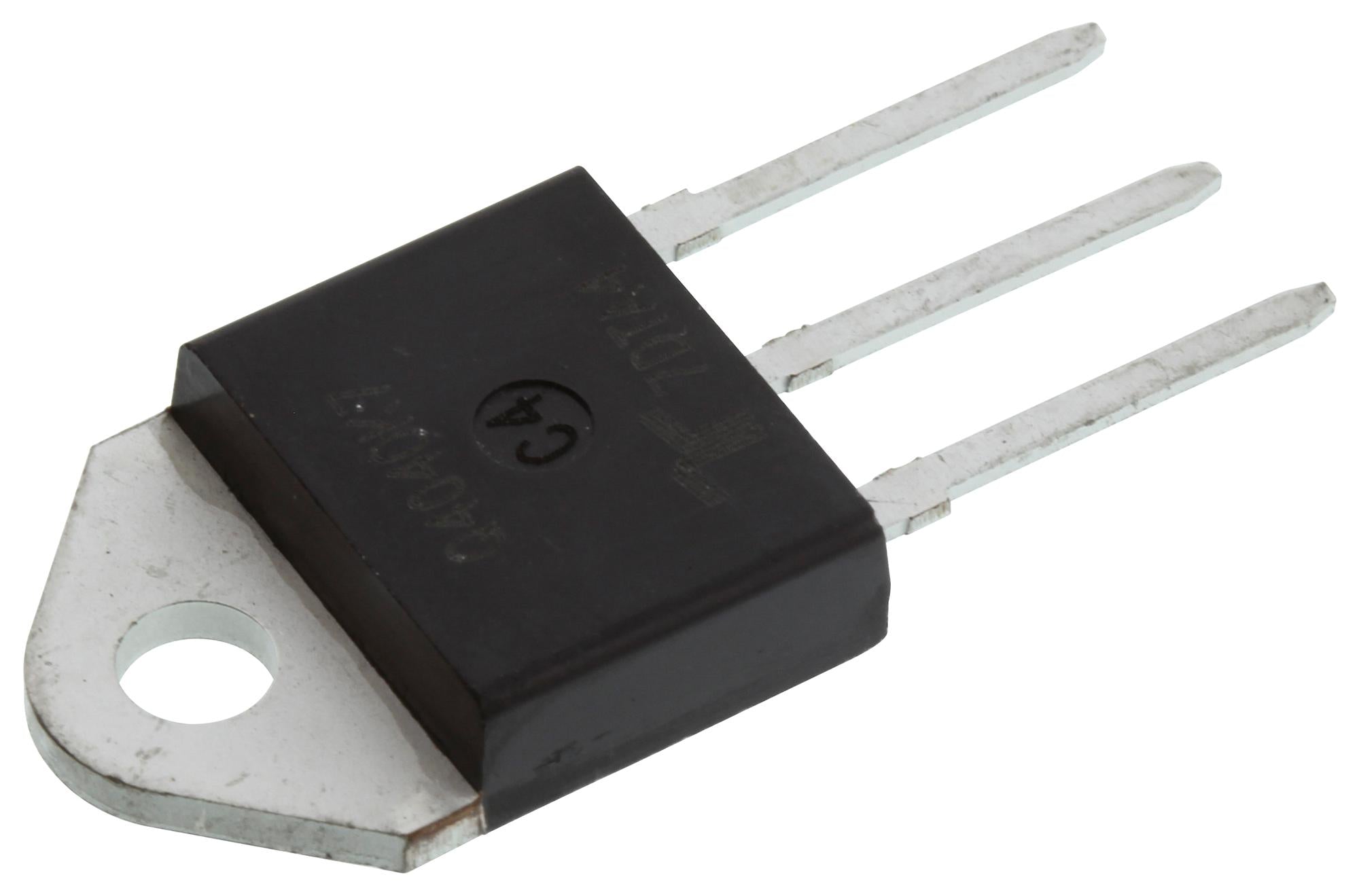

LITTELFUSE - Q4040K7TP - Triac, 400 V, 40 A, TO-218AC, 2 V, 335 A, 100 mA
- Peak Repetitive Off-State Voltage, Vdrm: 400V
- On State RMS Current IT(rms): 40A
- Triac Case Style: TO-218AC
- Gate Trigger Current Max (QI), Igt: 100mA
- Gate Trigger Voltage Max Vgt: 2V
- Peak Gate Power: 800mW
- Peak Non Rep Surge Current Itsm 50Hz: 335A
- Holding Current Max Ih: 100mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: Qxx40xx Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (12-Jan-2017)
