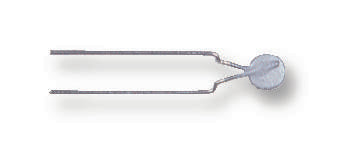

PTCCL09H471DBE Thermistor, PTC, 2R5, 20%, Radial Vishay

VISHAYUGS :PTCCL09H471DBE Code de commande:1187072

Prix:
Prix ​​promotionnel€2,33

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (167 unité)

Documents et téléchargements

description

VISHAY - PTCCL09H471DBE - PTC Thermistor, 2.5 ohm, Through Hole, 30 V, -20% to +20%, PTCCL Series

  • Zero Power Resistance at 25°C: 2.5ohm
  • Thermistor Mounting: Through Hole
  • Product Range: PTCCL Series
  • Operating Voltage Max: 30V
  • Applications: Overload & Over Temperature Protection
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Body Diameter: 8.5mm
  • Current Max: 5A
  • Current Temperature: 25°C
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating Voltage: 30V
  • Operating Voltage Range: 30V to 60V
  • Resistance: 2.5ohm
  • Resistance Temperature: 25°C
  • Resistance Tolerance: ± 25%
  • Resistance Tolerance +: 25%
  • Resistance Tolerance -: 25%
  • Thermistor Case Style: Radial Leaded
  • Thermistor Tolerance: -20% to +20%
  • Thermistor Type: PTC
  • Tripping Current: 705mA
  • Tripping Temperature: 140°C
  • Voltage Rating V DC: 30V
