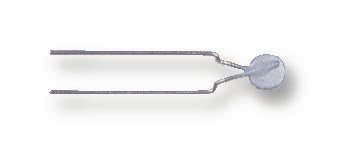

PTCCL09H171HBE Thermistor, PTC, 22R, 20%, Radial Vishay

VISHAYUGS :PTCCL09H171HBE Code de commande:1187083

Prix:
Prix ​​promotionnel€2,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1372 unité)

Documents et téléchargements

description

VISHAY - PTCCL09H171HBE - PTC Thermistor, 22 ohm, Through Hole, 265 V, -20% to +20%, PTCCL Series

  • Zero Power Resistance at 25°C: 22ohm
  • Thermistor Mounting: Through Hole
  • Product Range: PTCCL Series
  • Operating Voltage Max: 265V
  • Applications: Overload & Over Temperature Protection
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • Automotive Qualification Standard: -
  • Body Diameter: 8.5mm
  • Current Max: 0.9A
  • Current Temperature: 25°C
  • No. of Pins: 2Pins
  • Operating Temperature Range: 0°C to +70°C
  • Operating Voltage: 265V
  • Resistance: 22ohm
  • Resistance Temperature: 25°C
  • Resistance Tolerance: ± 25%
  • Resistance Tolerance +: 25%
  • Resistance Tolerance -: 25%
  • Thermistor Case Style: Radial Leaded
  • Thermistor Tolerance: -20% to +20%
  • Thermistor Type: PTC
  • Tripping Current: 255mA
  • Tripping Temperature: 140°C
  • Voltage Rating V DC: 265V
  • Voltage Rating VAC: 265V
