PT570024 Relay, 4PDT, 240Vac, 6a SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :PT570024 Code de commande:3072782

Prix:
Prix ​​promotionnel€12,31

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (953 unité)

Documents et téléchargements

description

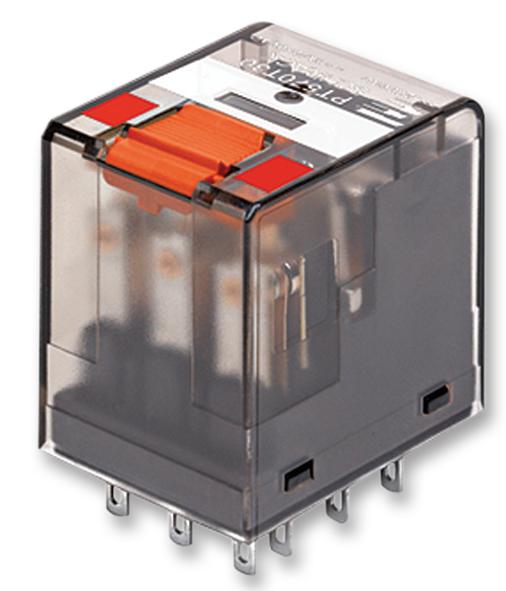

SCHRACK - TE CONNECTIVITY - 1-1393154-2 - Power Relay, 4PDT, 24 VDC, 6 A, PT, Socket, Non Latching

  • Contact Configuration: 4PDT
  • Coil Voltage: 24VDC
  • Contact Current: 6A
  • Product Range: PT Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 777ohm
  • SVHC: No SVHC (07-Jul-2017)
  • AC Coil Power: 1VA
  • Approval Category: VDE
  • Approvals & Standards: UL, VDE
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 230V
  • External Depth: 29mm
  • External Height: 28mm
  • External Width: 22.5mm
  • Nom Operating Power: 741mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -45°C
  • Operating Time: 15ms
  • Relay Type: Power - General Purpose
  • Release Time: 10ms
