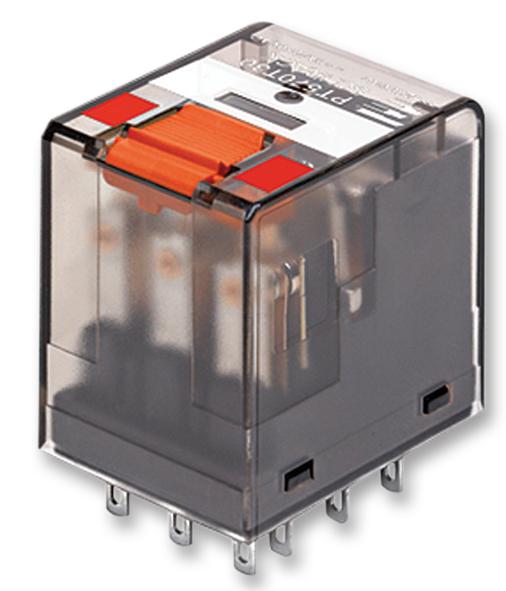

PT270730 Relay, DPDT, 240Vac, 12A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :PT270730 Code de commande:1175058

Prix:
Prix ​​promotionnel€12,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (41 unité)

Documents et téléchargements

description

SCHRACK - TE CONNECTIVITY - 5-1419111-1 - General Purpose Relay, PT Series, Power, Non Latching, DPDT, 230 VAC, 12 A

  • Contact Configuration: DPDT
  • Coil Voltage: 230VAC
  • Contact Current: 12A
  • Product Range: PT Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: -
  • Coil Resistance: 19.465kohm
  • SVHC: No SVHC (15-Jan-2018)
  • AC Coil Power: 1VA
  • Approval Bodies: LLOYDS, VDE
  • Approval Category: UL Recognised
  • Approvals & Standards: UL, VDE
  • Coil Voltage VAC Nom: 230V
  • Contact Current AC Max: 12A
  • Contact Current DC Max: 12A
  • Contact Current Max: 12A
  • Contact Voltage AC Max: 230V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 230V
  • Contact Voltage DC Nom: 24V
  • DC Coil Power: 750mW
  • Dielectric Voltage Coil to Contact: 2500VAC
  • Dielectric Voltage Contact to Contact: 1200VAC
  • External Depth: 29mm
  • External Height: 28mm
  • External Length / Height: 28mm
  • External Width: 22.5mm
  • Must Actuate Voltage: 184V
  • Must Release Voltage: 69V
  • Nom Operating Power: 1VA
  • Operating Temperature Max: 70°C
  • Operating Time: 15ms
