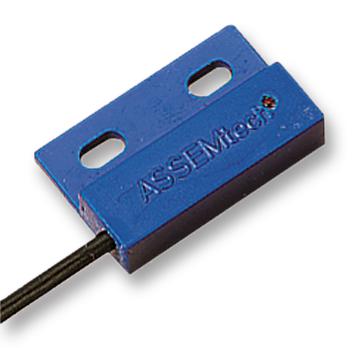

COMUS (ASSEMTECH) - PSS 25S/30. - Reed Switch, M18, 8 mm, SPST-NO, 120 VA, 1500 Vac, 25 mA
- Sensing Range Max: 8mm
- Sensor Mounting: -
- Operating Temperature Min: -30°C
- Operating Temperature Max: 70°C
- Supply Current: 25mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Contact Resistance: 4.7kohm
- External Depth: 7mm
- External Length / Height: 30mm
- External Width: 20mm
- Fixing Centres: 16mm
- Fixing Hole Diameter: 3.3mm
- Lead Length: 300mm
- Operating Distance: 8mm
- Operating Frequency: 100kHz
- Operating Temperature Range: -30°C to +70°C
- Output Current: 250mA
- Sensing Range: 0mm to 8mm
- Sensor Input: Magnetic
- Supply Voltage DC Max: 20V
- Supply Voltage DC Min: 10V
