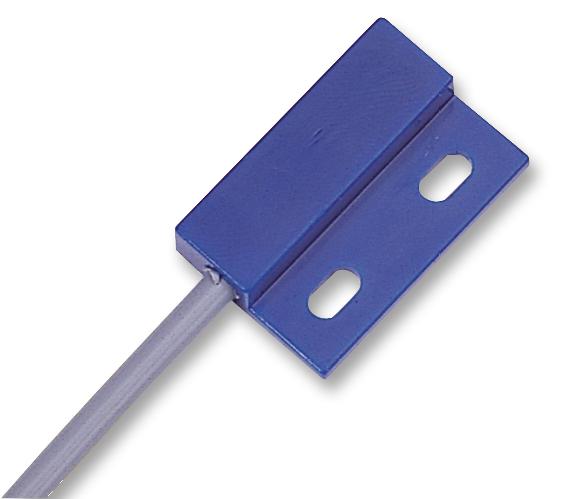

COMUS (ASSEMTECH) - PSB175/30 - Reed Switch, Flange Mount, 8 mm, SPST-NC, 5 VA, 175 Vac, 0.5 A
- Sensing Range Max: 8mm
- Sensor Mounting: Flange
- Operating Temperature Min: -20°C
- Operating Temperature Max: 85°C
- Supply Current: 500mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 7mm
- External Length / Height: 30mm
- External Width: 20mm
- Fixing Centres LxW: 16 (slots 6 x 3.3)
- Operating Temperature Range: -20°C to +85°C
- Sensing Range: 0mm to 5mm
- Sensor Input: Magnetic
- Supply Voltage AC Max: 175V
- Switching Power Max: 5W
- Switching Voltage: 175VAC
