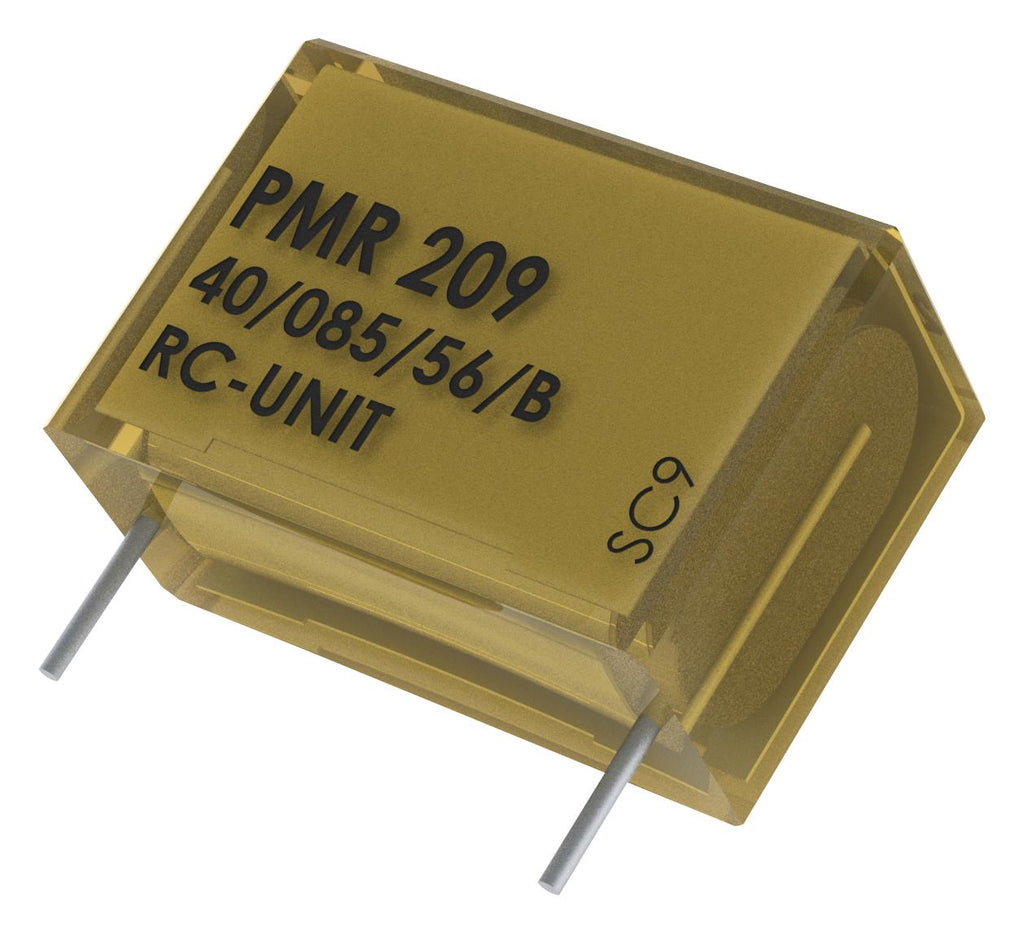

KEMET - PMR209ME6470M047R30 - Safety Capacitor, Metallized Paper, Radial Box - 2 Pin, 0.47 µF, ± 20%, X2, Through Hole
- Capacitance: 0.47µF
- Suppression Class: X2
- Product Range: PMR209 Series
- Voltage Rating X: 250V
- Voltage Rating Y: -
- Capacitor Dielectric Type: Paper (MP)
- Capacitance Tolerance: ± 20%
- dv/dt Rating: -
- Capacitor Case Style: Radial
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: DEMKO, EN, FI, NEMKO, SEMKO, SEV, UL, VDE
- Capacitance Tolerance +: 20%
- Capacitance Tolerance -: 20%
- External Depth: 15.3mm
- External Length / Height: 22mm
- External Width: 30.5mm
- Height: 22mm
- Internal Resistance: 47ohm
- Lead Diameter: 1mm
- Lead Length: 30mm
- Lead Spacing: 25.4mm
- Peak Pulse Voltage: 1000V
- Pitch Spacing: 25.4mm
- Power Rating: 500mW
- Power Rating per Element: 0.5W
- Resistance Tolerance +: 30%
- Resistance Tolerance -: 30%
- Voltage Rating VAC: 250V
