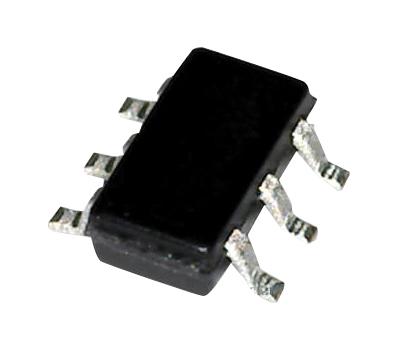

NEXPERIA - PMP5201V,115 - Bipolar Transistor Array, PNP, 45 V, -100 mA, 200 mW, 290 hFE, SOT-666
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 45V
- Power Dissipation Pd: 200mW
- DC Collector Current: -100mA
- DC Current Gain hFE: 290hFE
- Transistor Case Style: SOT-666
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 200mV
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Gain Bandwidth ft Min: 100MHz
- Gain Bandwidth ft Typ: 175MHz
- Hfe Min: 200
- Module Configuration: Dual
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 200mW
- Power Dissipation per device Max: 300mW
- SMD Marking: EC
- Transition Frequency ft: 175MHz
- Voltage Vcbo: 45V
