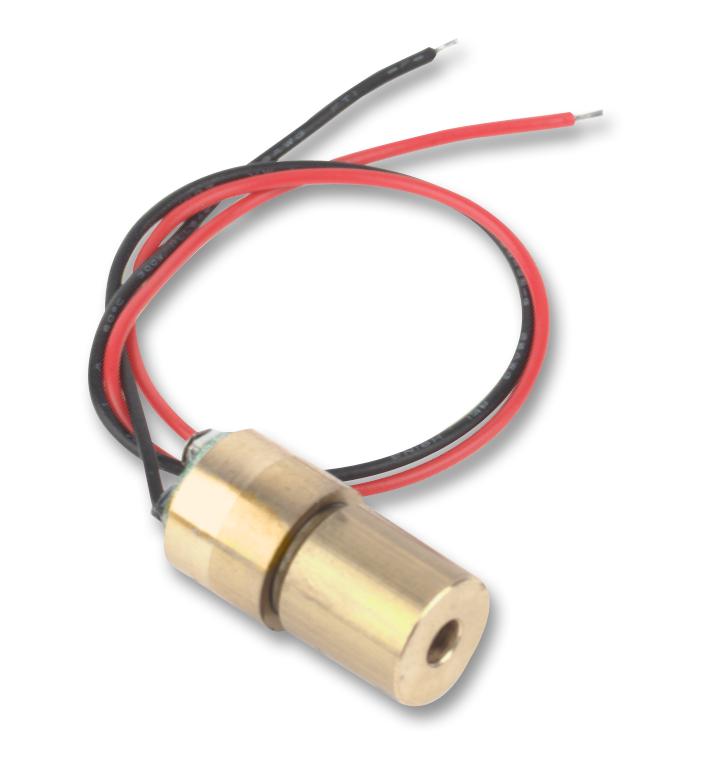

HERO - PLP6501FR - Laser Module, Fixed Focus, 650 nm, 990 µW, 6 V, 3.4mm x 5.8mm, 45 mA
- Wavelength Typ: 650nm
- Output Power: 990µW
- Voltage Rating: 6V
- Laser Lens: -
- Laser Beam Size: 3.4mm x 5.8mm
- Supply Current: 45mA
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Beam Diameter: 5.8mm
- Beam Divergence: 0.1mrad
- External Diameter: 10.5mm
- External Length / Height: 17mm
- Laser Class: Class 2
- Operating Temperature Max: 40°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +40°C
- Supply Voltage Max: 6V
- Supply Voltage Min: 2.7V
