description

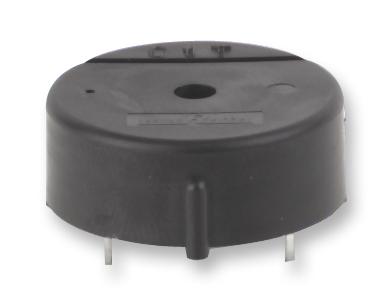

MURATA - PKB24SPCH3601-B0 - Transducer, Buzzer, Buzzer, 3 VDC, 15 VDC, 16 mA, 90 dB
- Transducer Function: Buzzer
- Tones: -
- Supply Voltage Min: 3VDC
- Supply Voltage Max: 15VDC
- Operating Current Max: 16mA
- Sound Level SPL: 90dB
- Sound Level Distance: 10cm
- Resonant Frequency: 3.6kHz
- Product Range: -
- SVHC: Lead titanium zirconium oxide (15-Jan-2019)
- Current Consumption: 16mA
- External Depth: 9.7mm
- External Diameter: 24.3mm
- External Height: 9.7mm
- External Length / Height: 9.7mm
- Frequency: 3.8kHz
- Lead Spacing: 15mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Supply Voltage DC Max: 15VDC
- Supply Voltage DC Min: 3VDC
