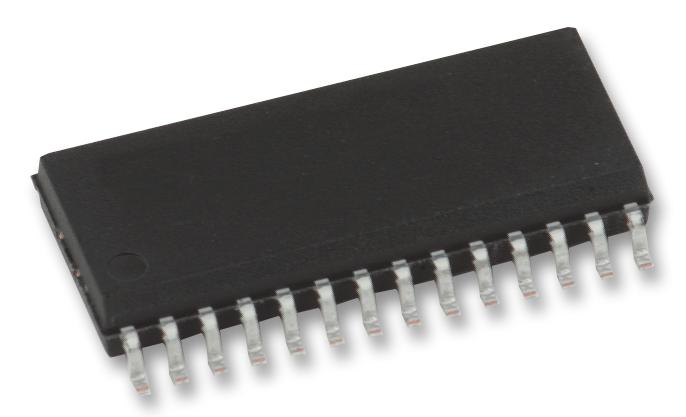

MICROCHIP - PIC18F2220-I/SO - 8 Bit MCU, Flash, PIC18 Family PIC18F22xx Series Microcontrollers, 40 MHz, 4 KB, 28 Pins, SOIC
- Product Range: PIC18 Family PIC18F22xx Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 4KB
- RAM Memory Size: 512Byte
- No. of Pins: 28Pins
- MCU Case Style: SOIC
- No. of I/O's: 25I/O's
- Embedded Interface Type: AUSART, I2C, SPI
- Supply Voltage Min: 4.2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC18
- MCU Series: PIC18F22xx
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC18F2xxx
- EEPROM Memory Size: 256Byte
- Flash Memory Size: 4KB
- IC Generic Number: 18F2220
- IC Temperature Range: Industrial
- Logic Function Number: 18F2220
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: ADC, BOD, ICSP, SPI/I2C, TIMERS, PWM, USART
- No. of ADC Inputs: 10
- No. of Bits: 8bit
- No. of MIPS: 10
- No. of PWM Channels: 2
- No. of Timers: 4
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
