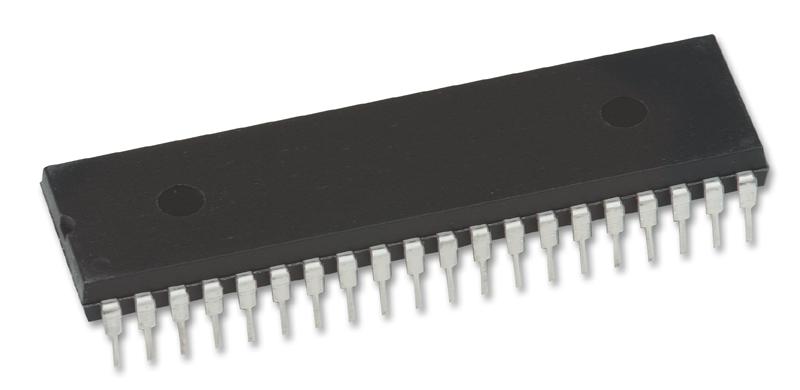

MICROCHIP - PIC16F874A-I/P - 8 Bit MCU, Flash, PIC16 Family PIC16F8XX Series Microcontrollers, 20 MHz, 7 KB, 40 Pins, DIP
- Product Range: PIC16 Family PIC16F8XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 7KB
- RAM Memory Size: 192Byte
- No. of Pins: 40Pins
- MCU Case Style: DIP
- No. of I/O's: 33I/O's
- Embedded Interface Type: I2C, SPI, USART
- Supply Voltage Min: 4V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F8xx
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F8xxx
- EEPROM Memory Size: 128Byte
- Flash Memory Size: 7KB
- IC Generic Number: 16F874
- IC Temperature Range: Industrial
- Logic Function Number: 16F874A
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: ISP/AUSART/MI²C, PWM, BOR, WDT, ADC, CCP, COMPARATOR
- No. of ADC Inputs: 8
- No. of Bits: 8bit
- No. of PWM Channels: 2
- No. of Timers: 3
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External
