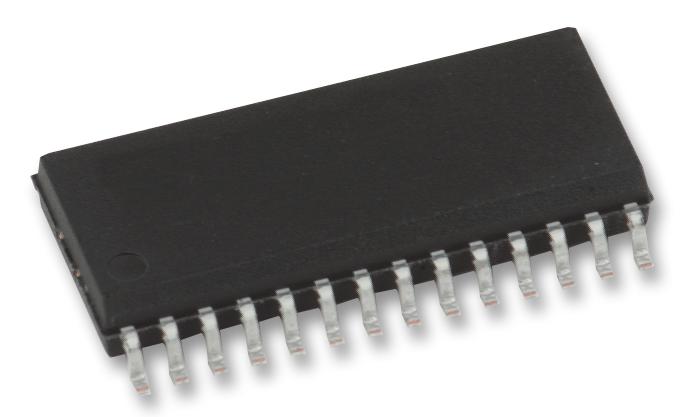

MICROCHIP - PIC16F767-I/SO - 8 Bit MCU, Flash, PIC16 Family PIC16F7XX Series Microcontrollers, 20 MHz, 14 KB, 28 Pins, SOIC
- Product Range: PIC16 Family PIC16F7XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 14KB
- RAM Memory Size: 368Byte
- No. of Pins: 28Pins
- MCU Case Style: SOIC
- No. of I/O's: 25I/O's
- Embedded Interface Type: I2C, SPI, USART
- Supply Voltage Min: 4V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F7xx
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F
- Flash Memory Size: 14KB
- Logic Function Number: 16F767
- MPU Core Size: 8bit
- Memory Type: Flash
- No. of ADC Inputs: 11
- No. of Bits: 8bit
- No. of External Interrupts: 16
- No. of PWM Channels: 3
- No. of Timers: 3
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, PWM, Timer
- Program Memory Size: 14KB
- Supply Voltage Range: 4V to 5.5V
