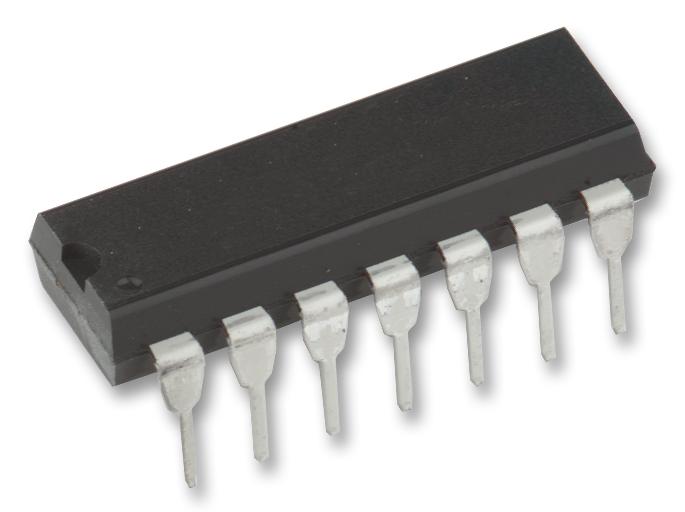

MICROCHIP - PIC16F676-I/P - 8 Bit MCU, Flash, PIC16 Family PIC16F6XX Series Microcontrollers, 20 MHz, 1.75 KB, 64 Byte, 14 Pins
- Product Range: PIC16 Family PIC16F6XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 1.75KB
- RAM Memory Size: 64Byte
- No. of Pins: 14Pins
- MCU Case Style: DIP
- No. of I/O's: 12I/O's
- Embedded Interface Type: -
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F6xx
- Automotive Qualification Standard: AEC-Q100
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F
- Device Marking: PIC16F676-I/P
- EEPROM Memory Size: 128Byte
- Flash Memory Size: 1.75KB
- IC Generic Number: 16F676
- IC Temperature Range: Industrial
- Logic Function Number: 16F676
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: ADC, BOD, COMP, ICSP, POR, TIMERS, WDT
- No. of ADC Inputs: 8
- No. of Bits: 8bit
- No. of Timers: 2
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
