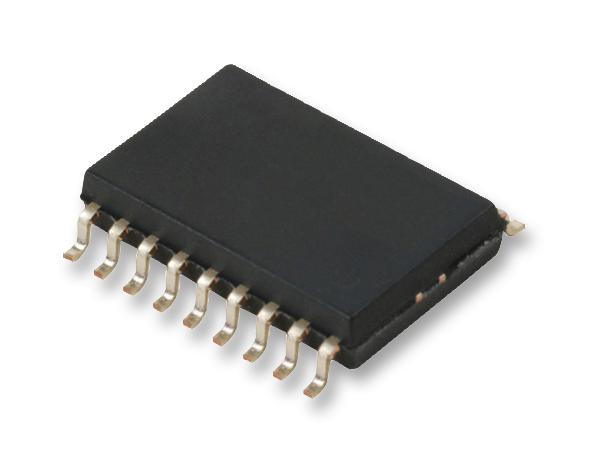

MICROCHIP - PIC16F648A-I/SO - 8 Bit MCU, Flash, PIC16 Family PIC16F6XX Series Microcontrollers, 20 MHz, 7 KB, 256 Byte, 18 Pins
- Product Range: PIC16 Family PIC16F6XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 7KB
- RAM Memory Size: 256Byte
- No. of Pins: 18Pins
- MCU Case Style: SOIC
- No. of I/O's: 16I/O's
- Embedded Interface Type: USART
- Supply Voltage Min: 3V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F6xx
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F6xxx
- Device Marking: PIC16F648A-I/SO
- EEPROM Memory Size: 256Byte
- Flash Memory Size: 7KB
- IC Generic Number: 16F648
- IC Temperature Range: Industrial
- Logic Function Number: 16F648A
- MPU Core Size: 8bit
- Memory Type: Flash EEPROM
- Microprocessor/Controller Features: 2 Comparators, WDT, AUSART, ICSP, BOR/PBOR, CCP/ECCP, PWM, Prog Vref, PWR Mgt.
- No. of Bits: 8bit
- No. of Inputs: 1
- No. of PWM Channels: 1
- No. of Timers: 3
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Program Memory Size: 7KB
