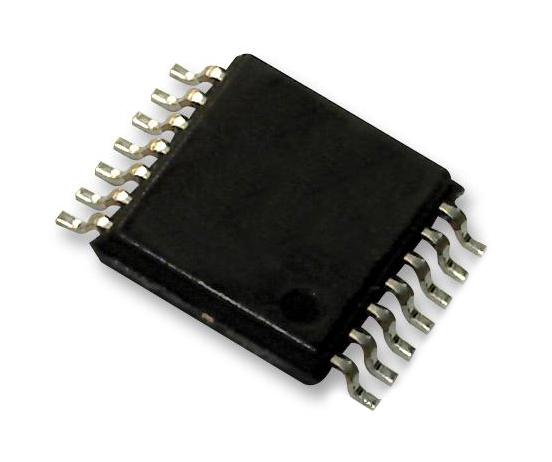

MICROCHIP - PIC16F505-I/ST - 8 Bit MCU, Flash, PIC16 Family PIC16F5XX Series Microcontrollers, 20 MHz, 1.5 KB, 14 Pins, TSSOP
- Product Range: PIC16 Family PIC16F5XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 1.5KB
- RAM Memory Size: 72Byte
- No. of Pins: 14Pins
- MCU Case Style: TSSOP
- No. of I/O's: 12I/O's
- Embedded Interface Type: -
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F5xx
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F5xx
- Flash Memory Size: 1.5KB
- Logic Function Number: 16F505
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: WDT
- No. of Bits: 8bit
- No. of External Interrupts: 0
- No. of MIPS: 5
- No. of Timers: 1
- Number of bits In Timer: 8
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: Timer
- Program Memory Size: 1.5KB
- Supply Voltage Range: 2V to 5.5V
- Termination Type: Surface Mount Device
