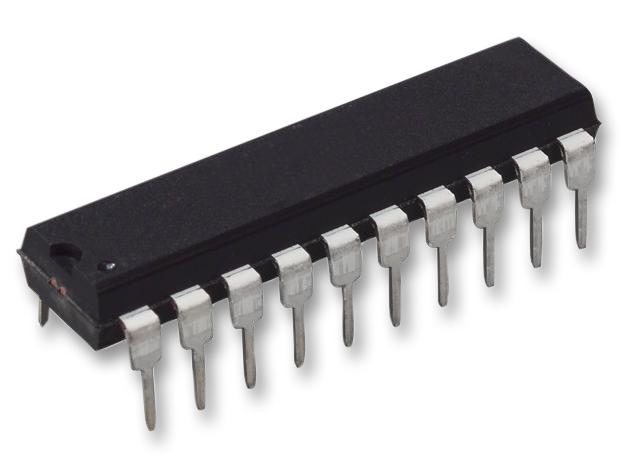

MICROCHIP - PIC16F1509-E/P - 8 Bit MCU, Flash, PIC16 Family PIC16F15xx Series Microcontrollers, 20 MHz, 14 KB, 512 Byte, 20 Pins
- Product Range: PIC16 Family PIC16F15xx Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 14KB
- RAM Memory Size: 512Byte
- No. of Pins: 20Pins
- MCU Case Style: DIP
- No. of I/O's: 18I/O's
- Embedded Interface Type: AUSART, EUSART, I2C, SPI
- Supply Voltage Min: 2.3V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F15xx
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F150x
- MPU Core Size: 8bit
- No. of PWM Channels: 4
- No. of Timers: 3
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, DAC, PWM, Timer
- Program Memory Size: 14KB
- Supply Voltage Range: 2.3V to 5.5V
