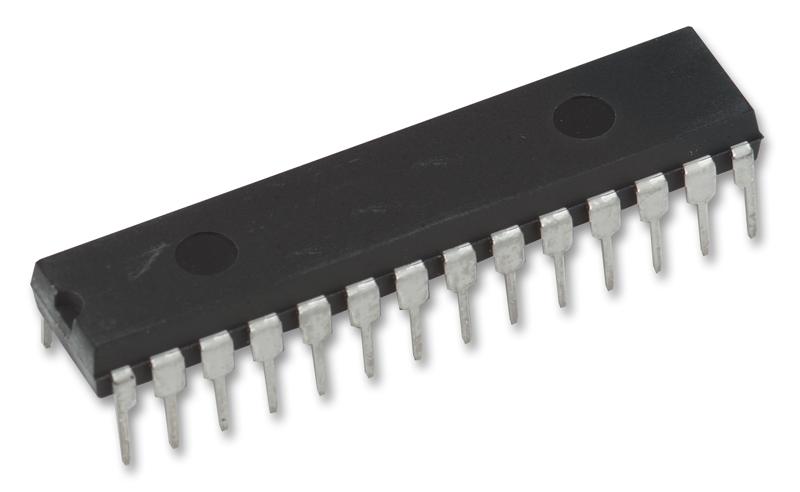

MICROCHIP - PIC16C745-I/SP - 8 Bit MCU, One Time Programmable, PIC16 Family PIC16C7x Series Microcontrollers, 24 MHz, 14 KB
- Product Range: PIC16 Family PIC16C7x Series Microcontrollers
- CPU Speed: 24MHz
- Program Memory Size: 14KB
- RAM Memory Size: 256Byte
- No. of Pins: 28Pins
- MCU Case Style: NDIP
- No. of I/O's: 22I/O's
- Embedded Interface Type: SCI, USART
- Supply Voltage Min: 4.35V
- Supply Voltage Max: 5.25V
- MCU Family: PIC16
- MCU Series: PIC16C7x
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Clock Frequency: 20MHz
- Controller Family/Series: PIC16C
- IC Generic Number: 16C745
- IC Temperature Range: Industrial
- Logic Function Number: 16C745
- MPU Core Size: 8bit
- Memory Type: EPROM
- Microprocessor/Controller Features: Parallel Slave Port, USART, Two Capture, Compare, PWM, Brown-Out Detection
- No. of ADC Inputs: 5
- No. of Bits: 8bit
- No. of PWM Channels: 2
- No. of Timers: 3
- OTP Memory Size: 112KB
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External
- Peripherals: ADC, PWM, Timer
