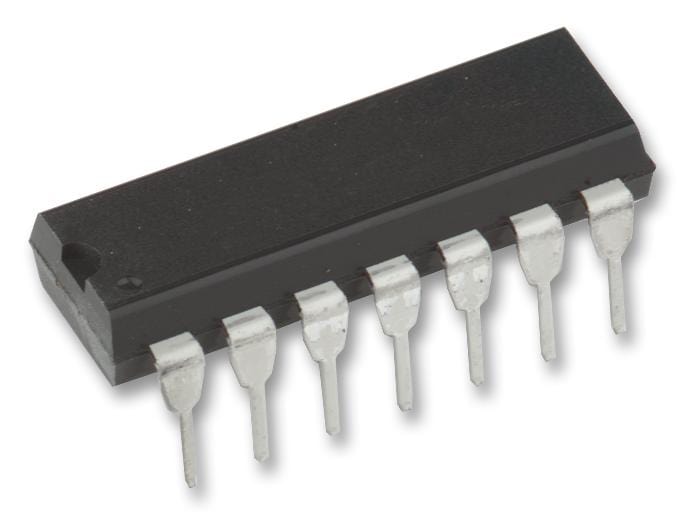

MICROCHIP - PIC16C505-04/P - 8 Bit MCU, One Time Programmable, PIC16 Family PIC16C5x Series Microcontrollers, 4 MHz, 1.5 KB
- Product Range: PIC16 Family PIC16C5x Series Microcontrollers
- CPU Speed: 4MHz
- Program Memory Size: 1.5KB
- RAM Memory Size: 72Byte
- No. of Pins: 14Pins
- MCU Case Style: DIP
- No. of I/O's: 12I/O's
- Embedded Interface Type: -
- Supply Voltage Min: 3V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16C5x
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16C5xx
- Flash Memory Size: 1536Byte
- IC Generic Number: 16C505
- IC Temperature Range: Commercial
- Logic Function Number: 16C505
- MPU Core Size: 8bit
- Memory Type: EPROM
- Microprocessor/Controller Features: INTERNAL OSCILLATOR,ISP
- No. of Bits: 8bit
- No. of Timers: 1
- OTP Memory Size: 12KB
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Operating Temperature Range: 0°C to +70°C
- Oscillator Type: External, Internal
- Peripherals: Timer
- Program Memory Size: 1.5KB
- Supply Voltage Range: 3V to 5.5V
