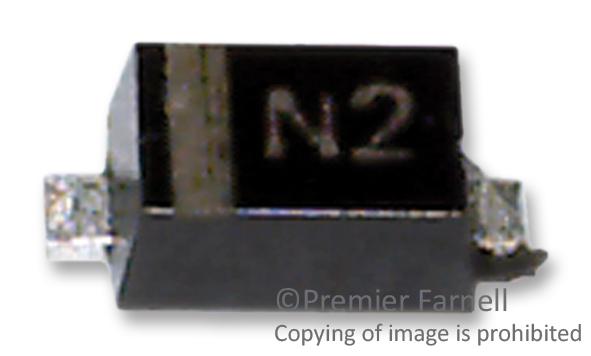

PESD5V0S1UB,115 Diode, TVs, Sod-523 NEXPERIA

NEXPERIAUGS :PESD5V0S1UB,115 Code de commande:8737711

Prix:
Prix ​​promotionnel€0,65

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (206665 unité)

Documents et téléchargements

description

NEXPERIA - PESD5V0S1UB,115 - ESD Protection Device, TVS, 9 V, SOD-523, 2 Pins, 5 V, PESD5

  • Clamping Voltage Vc Max: 9V
  • Diode Case Style: SOD-523
  • No. of Pins: 2Pins
  • Operating Voltage: 5V
  • Power Dissipation Pd: -
  • Product Range: PESD5 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage: 9V
  • Breakdown Voltage Max: 7.2V
  • Breakdown Voltage Min: 6.4V
  • Breakdown Voltage Range: 6.4V to 7.2V
  • Breakover Voltage Min: 6.4V
  • Capacitance Cd @ Vr Max: 200pF
  • Capacitance Cd @ Vr Typ: 152pF
  • Clamping Voltage @ 8/20µs Max: 20V
  • Diode Type: Unidirectional TVS
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Peak Pulse Current Ippm: 15A
  • Peak Pulse Power Dissipation: 260W
  • Reel Quantity: 1
  • Reverse Stand-Off Voltage Vrwm: 5V
  • SMD Marking: N2
  • Stand-off Voltage: 5V
  • TVS Polarity: Unidirectional
