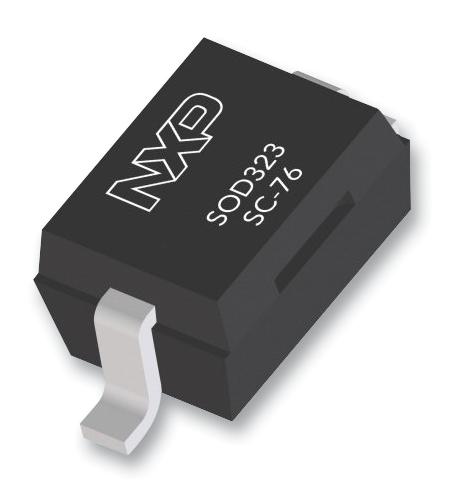

PESD1LIN,115 Diode, TVs, 50NA, 24V, Sod-323 NEXPERIA

NEXPERIAUGS :PESD1LIN,115 Code de commande:1510705

Prix:
Prix ​​promotionnel€0,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (73816 unité)

Documents et téléchargements

description

NEXPERIA - PESD1LIN,115 - ESD Protection Device, TVS, 70 V, SOD-323, 2 Pins, 15 V, PESD1

  • Clamping Voltage Vc Max: 70V
  • Diode Case Style: SOD-323
  • No. of Pins: 2Pins
  • Operating Voltage: 15V
  • Power Dissipation Pd: -
  • Product Range: PESD1 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage: 27.8V
  • Breakdown Voltage Max: 30.3V
  • Breakdown Voltage Min: 25.4V
  • Breakdown Voltage Range: 25.4V to 30.3V
  • Breakover Voltage Min: 25.4V
  • Capacitance Cd @ Vr Max: 17pF
  • Capacitance Cd @ Vr Typ: 13pF
  • Clamping Voltage @ 8/20µs Max: 70V
  • Diode Type: Bidirectional TVS
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Peak Pulse Current Ippm: 3A
  • Peak Pulse Power Dissipation: 160W
  • Reverse Stand-Off Voltage Vrwm: 24V
  • SMD Marking: AM
  • Stand-off Voltage: 24V
  • TVS Polarity: Bidirectional
  • Termination Type: Surface Mount Device
