PESD12VL2BT,215 Diode, TVs, 0.05UA, 12V, Sot-23 NEXPERIA

NEXPERIAUGS :PESD12VL2BT,215 Code de commande:1510695

Prix:
Prix ​​promotionnel€0,75

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (22136 unité)

Documents et téléchargements

description

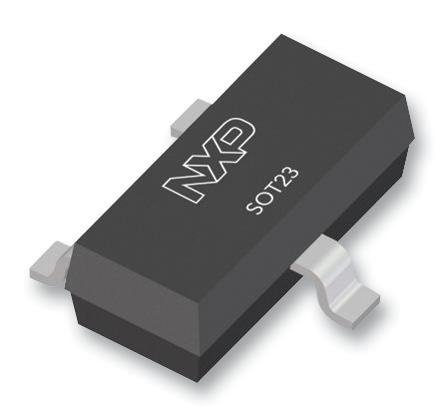

NEXPERIA - PESD12VL2BT,215 - ESD Protection Device, TVS, 37 V, SOT-23, 3 Pins, 12 V, PESD1

  • Clamping Voltage Vc Max: 37V
  • Diode Case Style: SOT-23
  • No. of Pins: 3Pins
  • Operating Voltage: 12V
  • Power Dissipation Pd: -
  • Product Range: PESD1 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage: 15.8V
  • Breakdown Voltage Max: 16.7V
  • Breakdown Voltage Min: 14.2V
  • Breakdown Voltage Range: 14.2V to 16.7V
  • Breakover Voltage Min: 14.2V
  • Capacitance Cd @ Vr Typ: 19pF
  • Clamping Voltage @ 8/20µs Max: 37V
  • Diode Type: Bidirectional TVS
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Peak Pulse Current Ippm: 5A
  • Peak Pulse Power Dissipation: 200W
  • Reverse Stand-Off Voltage Vrwm: 12V
  • SMD Marking: V5
  • Stand-off Voltage: 12V
  • TVS Polarity: Bidirectional
  • Termination Type: Surface Mount Device
