PE014024 Relay, SPDT, 240Vac, 5A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :PE014024 Code de commande:1175009

Prix:
Prix ​​promotionnel€3,01

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (32612 unité)

Documents et téléchargements

description

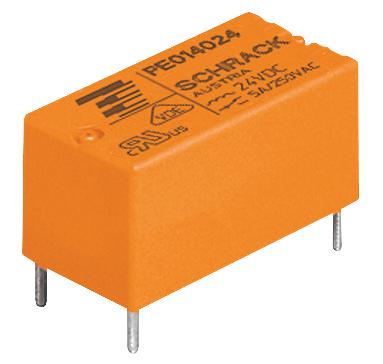

SCHRACK - TE CONNECTIVITY - 1-1393219-0 - General Purpose Relay, PE Series, Power, Non Latching, SPDT, 24 VDC, 5 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 5A
  • Product Range: PE Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 2.725kohm
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: VDE
  • Approval Category: UL Recognised
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 240V
  • DC Coil Power: 200mW
  • External Depth: 10mm
  • External Height: 20mm
  • External Length / Height: 20mm
  • External Width: 10mm
  • Nom Operating Power: 211mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 5ms
  • PCB Hole Diameter: 1.3mm
  • Relay Type: Power - General Purpose
  • Release Time: 2ms
