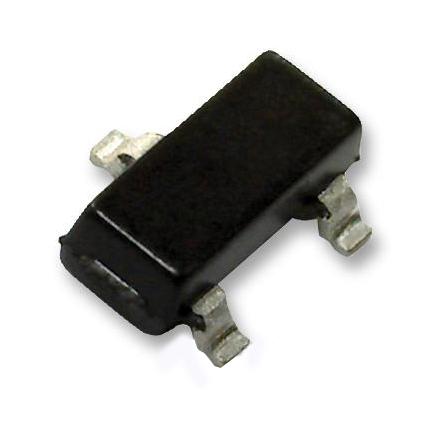

NEXPERIA - PDTA143ET,215 - Bipolar Pre-Biased / Digital Transistor, BRT, Single PNP, -50 V, -100 mA, 4.7 kohm, 4.7 kohm
- Digital Transistor Polarity: Single PNP
- Collector Emitter Voltage V(br)ceo: -50V
- Continuous Collector Current Ic: -100mA
- Base Input Resistor R1: 4.7kohm
- Base-Emitter Resistor R2: 4.7kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: SOT-23
- No. of Pins: 3 Pin
- Product Range: PDTA143E Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): -150mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 10µA
- DC Collector Current: -100mA
- DC Current Gain hFE: 30hFE
- Full Power Rating Temperature: 25°C
- Hfe Min: 20
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Pd: 250mW
- Power Dissipation Ptot Max: 250mW
- Resistance R1: 4.7kohm
- Resistance R2: 4.7kohm
- Transistor Case Style: SOT-23
- Transistor Polarity: PNP
- Transistor Type: Bias Resistor (BRT)
- Voltage Vcbo: -50V
