PD 1/8-0 Heatshrink, End Cap, 3.2mm, Pk100 Raychem - Te Connectivity

RAYCHEM - TE CONNECTIVITYUGS :PD 1/8-0 Code de commande:769216

Prix:
Prix ​​promotionnel€105,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (35 unité)

Documents et téléchargements

description

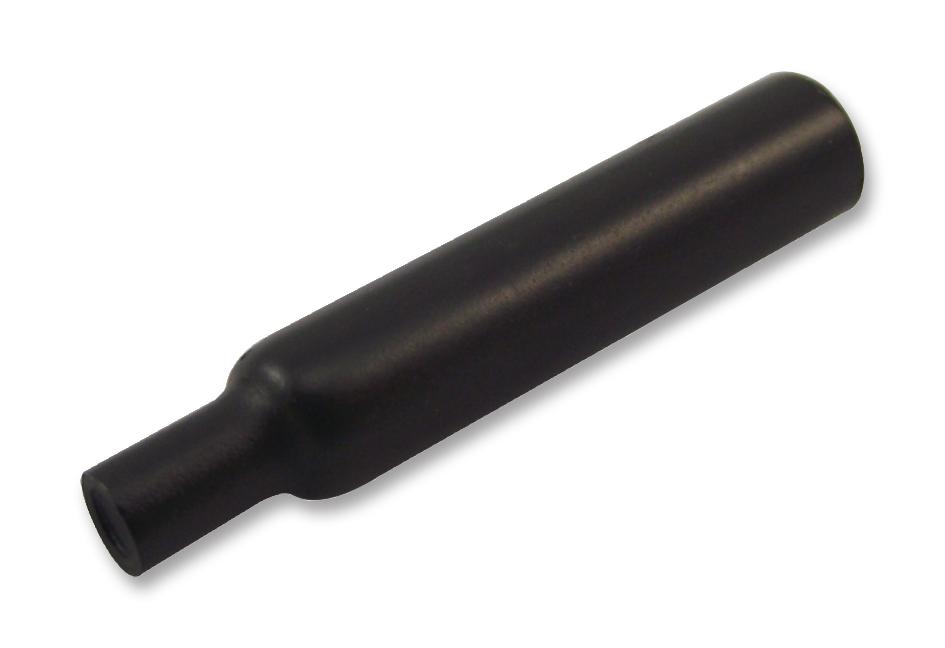

RAYCHEM - TE CONNECTIVITY - PD 1/8-0 - Heat Shrink Boot, PD-Caps Encapsulant Lined, End Cap, 0.125 ", 3.2 mm, Black, 0.87 ", 22 mm

  • Boot Configuration: End Cap
  • I.D. Supplied - Imperial: 0.125"
  • I.D. Supplied - Metric: 3.2mm
  • Shrink Tubing / Boot Colour: Black
  • Total Length - Imperial: 0.87"
  • Total Length - Metric: 22mm
  • I.D. Recovered Max - Imperial: 0.022"
  • I.D. Recovered Max - Metric: 0.58mm
  • Shrink Tubing / Boot Material: PO (Polyolefin)
  • Shrink Ratio: 3
  • Product Range: -
  • Accessory Type: Heat Shrink End Cap
  • Body Material: PO (Polyolefin)
  • Cable Diameter Max: 3.2mm
  • Cable Diameter Min: 0.58mm
  • Colour: Black
  • External Length / Height: 26mm
  • Fully Shrunk Diameter: 0.58mm
  • I.D. Max Recovered: 0.58mm
  • I.D. Supplied: 3.2mm
  • Internal Diameter: 3.2mm
  • Length - Imperial: 0.87"
  • Length - Metric: 22mm
  • Material: PO (Polyolefin)
  • Operating Temperature Max: 110°C
  • Operating Temperature Min: -55°C
  • Shrink Temperature: 125°C
  • Shrink Type: Heat
  • Unshrunk Diameter: 3.2mm
  • Wall Thickness: 1.27mm
