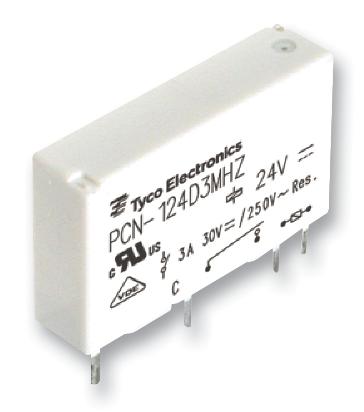

PCN-124D3MHZ,001B Relay, SPST-NO, 250VAC, 30Vdc, 5A Te Connectivity

TE CONNECTIVITYUGS :7-1461491-6 Code de commande:1891909

Prix:
Prix ​​promotionnel€7,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (677 unité)

Documents et téléchargements

description

TE CONNECTIVITY - 7-1461491-6 - General Purpose Relay, PCN Series, Power, Non Latching, SPST-NO, 24 VDC, 5 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 5A
  • Product Range: PCN Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 4.8kohm
  • SVHC: No SVHC (27-Jun-2018)
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 20mm
  • External Height: 12.5mm
  • External Width: 5mm
  • Nom Operating Power: 120mW
  • Relay Type: Power
