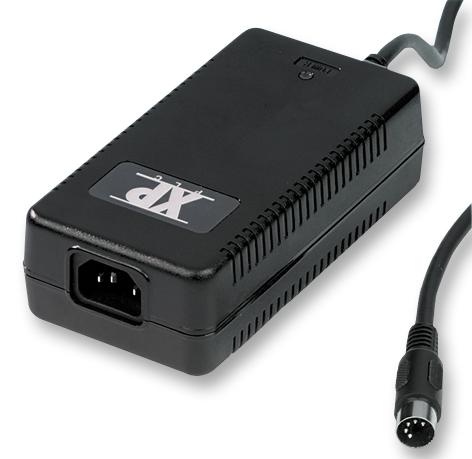

XP POWER - PCM50UT03 - AC/DC Power Supply, Medical, 3 Output, 42 W, 5 V, 5 A, 12 V
- No. of Outputs: 3 Output
- Output Power Max: 42W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 5A
- Output Voltage - Output 2: 12V
- Output Current - Output 2: 2A
- Output Connector: 5 Way DIN
- Output Voltage - Output 3: -5V
- Output Current - Output 3: 800mA
- Power Supply Output Type: Fixed
- Input Voltage VAC: 90V AC to 264V AC
- Product Range: PCM Series
- Plug Type: Mains Plug Sold Separately
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approvals / Standards: CSA 22.2 No. 601, EN 60601, UL 60601
- External Depth: 146mm
- External Length / Height: 43mm
- External Width: 76mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- No. of Outputs: 3Outputs
- Output Power: 50W
- Power Rating: 50W
- Power Supply Mounting: Desktop
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 90V
