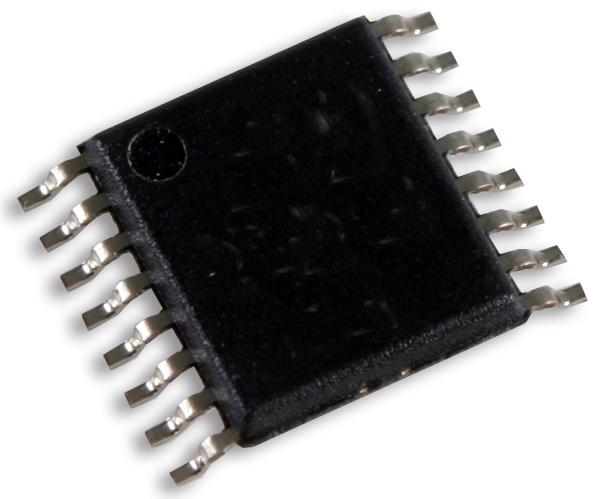

NXP - PCA9554PW,112 - I/O Expander, 8bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, TSSOP
- Chip Configuration: 8bit
- Bus Frequency: 400kHz
- IC Interface Type: I2C, SMBus
- Supply Voltage Min: 2.3V
- Supply Voltage Max: 5.5V
- Interface Case Style: TSSOP
- No. of Pins: 16Pins
- No. of I/O's: 8I/O's
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 9554
- Communication Function: I/O Expander
- IC Function: 8bit I/O Port with Interrupt
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Supply Current: 104µA
- Supply Voltage Range: 2.3V to 5.5V
- Termination Type: Surface Mount Device
