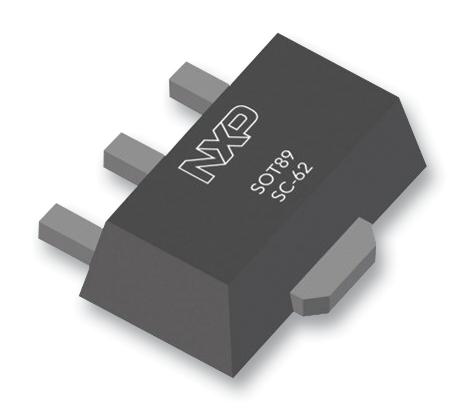

NEXPERIA - PBSS304NX,115 - Bipolar (BJT) Single Transistor, NPN, 60 V, 4.7 A, 600 mW, SOT-89, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 60V
- Transition Frequency ft: 130MHz
- Power Dissipation Pd: 600mW
- DC Collector Current: 4.7A
- DC Current Gain hFE: 75hFE
- Transistor Case Style: SOT-89
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 35mV
- Current Ic Continuous a Max: 500mA
- Gain Bandwidth ft Typ: 130MHz
- Hfe Min: 300
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Low Saturation (BISS)
