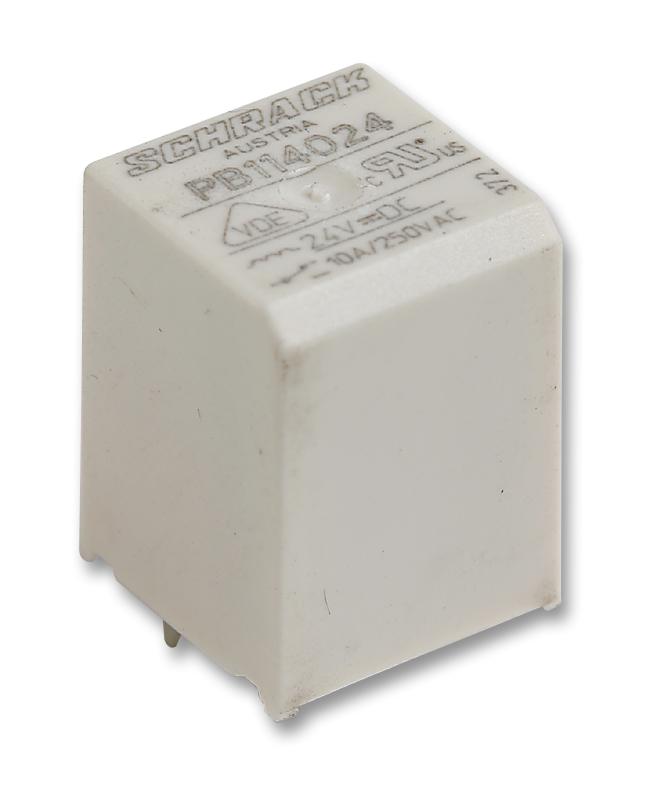

SCHRACK - TE CONNECTIVITY - 9-1415029-1 - General Purpose Relay, PB Series, Power, Non Latching, SPDT, 24 VDC, 10 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 10A
- Product Range: PB Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 1.6kohm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: VDE
- Approval Category: UL Recognised
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Max: 100V
- Current Rating: 10A
- DC Coil Power: 360mW
- Dielectric Voltage Coil to Contact: 2500VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 15mm
- External Height: 20mm
- External Length / Height: 20mm
- External Width: 15mm
- Must Actuate Voltage: 18V
- Must Release Voltage: 2.4V
- Nom Operating Power: 360mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 20ms
- Relay Type: Power - General Purpose
