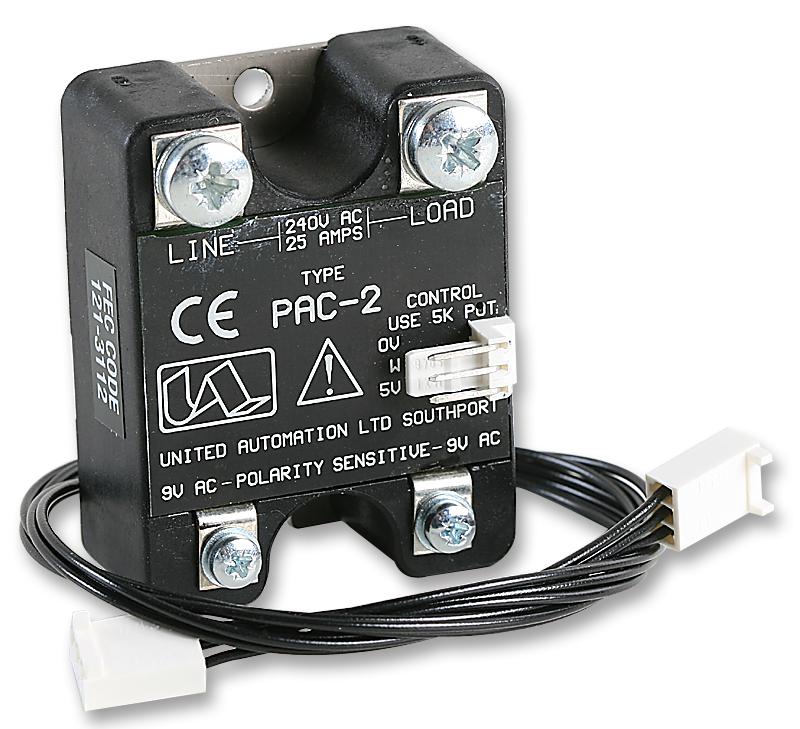

UNITED AUTOMATION - PAC2 - Power Controller, CE Approved, 60 Hz, 25 A, 207 V to 253 V
- On State Current Max: 25A
- Supply Voltage Min: 207V
- Supply Voltage Max: 253V
- Isolation Voltage: 3.5kV
- Supply Frequency: 60Hz
- Operating Temperature Min: -
- Operating Temperature Max: 65°C
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Approval Bodies: CE
- Control Voltage DC Max: 5V
- Control Voltage DC Min: 0V
- External Depth: 56mm
- External Length / Height: 28mm
- External Width: 43mm
- Fixing Centres: 48mm
- For Use With: Infrared Quartz and Ceramic Heaters and Lighting, Transformers and AC Motors
- Gate Trigger Current Max, Igt: 25A
- I2t: 250s
- Input Current: 0.05A
- Input Impedance: 5kohm
- Input Voltage Max: 10V
- Input Voltage Min: 0V
- Leakage Current: 5mA
- Power Dissipation Ptot Max: 1.2W
- RMS Current (Irms): 25A
- Supply Voltage: 10V
- Supply Voltage AC Max: 253V
- Supply Voltage AC Min: 207V
- Supply Voltage Range: 207V AC to 253V AC
- Surge Current: 250A
- Weight: 0.63kg
